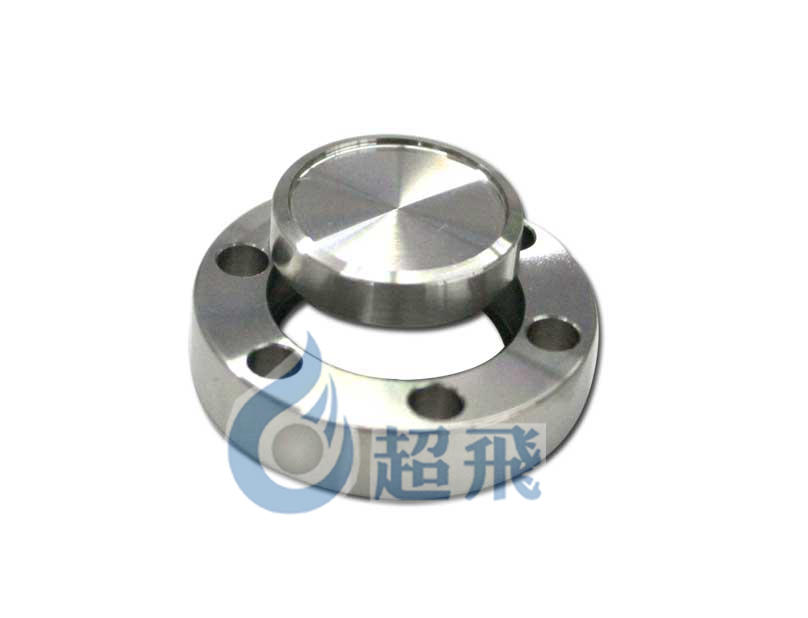

CF 盲法蘭-旋轉式
CF BLANKER, ROTATABLE
材質：304/L
提供攻牙孔與鉆孔規格
Catalogue PN
Type
Flange Size
A
(mm)B
(mm)D
(mm)PCD
(mm)Bolt
HolesDiameter /
Thread
(mm)CF-BL-133R
Thru Holes
CF1.33"/CF16
33.70
19.41
7.60
26.97
6
4.37
CF-BL-133RT
Tapped
CF1.33"/CF16
33.70
19.41
7.60
26.97
6
8-32
CF-BL-133RTM
Tapped(M)
CF1.33"/CF16
33.70
19.41
7.60
26.97
6
M4
CF-BL-212R
Thru Holes
CF2.12"/CF25
53.80
27.94
11.90
41.28
4
6.73
CF-BL-212RT
Tapped
CF2.12"/CF25
53.80
27.94
11.90
41.28
4
1/4-28
CF-BL-212RTM
Tapped(M)
CF2.12"/CF25
53.80
27.94
11.90
41.28
4
M6
CF-BL-275R
Thru Holes
CF2.75"/CF35
69.30
48.31
12.70
58.72
6
6.73
CF-BL-275RT
Tapped
CF2.75"/CF35
69.30
48.31
12.70
58.72
6
1/4-28
CF-BL-275RTM
Tapped(M)
CF2.75"/CF35
69.30
48.31
12.70
58.72
6
M6
CF-BL-338R
Thru Holes
CF3.38"/CF50
85.30
54.50
17.40
72.39
8
8.43
CF-BL-338RT
Tapped
CF3.38"/CF50
85.30
54.50
17.40
72.39
8
5/16-24
CF-BL-338RTM
Tapped(M)
CF3.38"/CF50
85.30
54.50
17.40
72.39
8
M8
CF-BL-450R
Thru Holes
CF4.50"/CF63
113.50
72.39
19.10
92.15
8
8.43
CF-BL-450RT
Tapped
CF4.50"/CF63
113.50
72.39
19.10
92.15
8
5/16-24
CF-BL-450RTM
Tapped(M)
CF4.50"/CF63
113.50
72.39
19.10
92.15
8
M8
CF-BL-462R
Thru Holes
CF4.62"/CF80
117.00
79.71
20.60
102.36
10
8.43
CF-BL-462RT
Tapped
CF4.62"/CF80
117.00
79.71
20.60
102.36
10
5/16-24
CF-BL-462RTM
Tapped(M)
CF4.62"/CF80
117.00
79.71
20.60
102.36
10
M8
CF-BL-600R
Thru Holes
CF6.00"/CF100
151.60
106.17
21.30
130.25
16
8.43
CF-BL-600RT
Tapped
CF6.00"/CF100
151.60
106.17
21.30
130.25
16
5/16-24
CF-BL-600RTM
Tapped(M)
CF6.00"/CF100
151.60
106.17
21.30
130.25
16
M8
CF-BL-675R
Thru Holes
CF6.75"/CF130
170.69
129.50
21.30
151.61
18
8.43
CF-BL-675RT
Tapped
CF6.75"/CF130
170.69
129.50
21.30
151.61
18
5/16-24
CF-BL-675RTM
Tapped(M)
CF6.75"/CF130
170.69
129.50
21.30
151.61
18
M8
CF-BL-800R
Thru Holes
CF8.00"/CF160
202.44
155.70
23.90
181.05
20
8.43
CF-BL-800RT
Tapped
CF8.00"/CF160
202.44
155.70
23.90
181.05
20
5/16-24
CF-BL-800RTM
Tapped(M)
CF8.00"/CF160
202.44
155.70
23.90
181.05
20
M8
CF-BL-1000R
Thru Holes
CF10.00"/CF200
253.24
208.28
24.60
231.85
24
8.43
CF-BL-1000RT
Tapped
CF10.00"/CF200
253.24
208.28
24.60
231.85
24
5/16-24
CF-BL-1000RTM
Tapped(M)
CF10.00"/CF200
253.24
208.28
24.60
231.85
24
M8
CF-BL-1200R
Thru Holes
CF12.00"/CF250
304.04
256.03
25.90
283.97
32
8.43
CF-BL-1200RT
Tapped
CF12.00"/CF250
304.04
256.03
25.90
283.97
32
5/16-24
CF-BL-1200RTM
Tapped(M)
CF12.00"/CF250
304.04
256.03
25.90
283.97
32
M8
CF-BL-1325R
Thru Holes
CF13.25"/CF270
335.79
276.30
28.45
306.32
30
10.49
CF-BL-1325RT
Tapped
CF13.25"/CF270
335.79
276.30
28.45
306.32
30
3/8-24
CF-BL-1325RTM
Tapped(M)
CF13.25"/CF270
335.79
276.30
28.45
306.32
30
M10
CF-BL-1400R
Thru Holes
CF14.00"/CF300
354.84
305.82
28.45
325.37
30
10.49
CF-BL-1400RT
Tapped
CF14.00"/CF300
354.84
305.82
28.45
325.37
30
3/8-24
CF-BL-1400RTM
Tapped(M)
CF14.00"/CF300
354.84
305.82
28.45
325.37
30
M10
CF-BL-1650R
Thru Holes
CF16.50"/CF350
418.34
359.61
28.45
388.87
36
10.49
CF-BL1650RT
Tapped
CF16.50"/CF350
418.34
359.61
28.45
388.87
36
3/8-24
CF-BL1650RTM
Tapped(M)
CF16.50"/CF350
418.34
359.61
28.45
388.87
36
M10
